ELECTRONIC JACQUARD
Electronic Jacquard
MILD STEEL
12B (3/4″) CHAIN ( OPTIONAL-BELT DRIVE AND DUPLEX CHAIN 12B DRIVE )

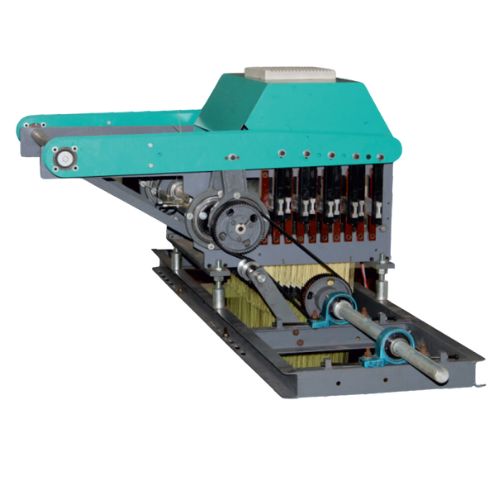

LOW HEIGHT MODEL AVAILABLE
UPTO 350 RPM
450 M/MIN

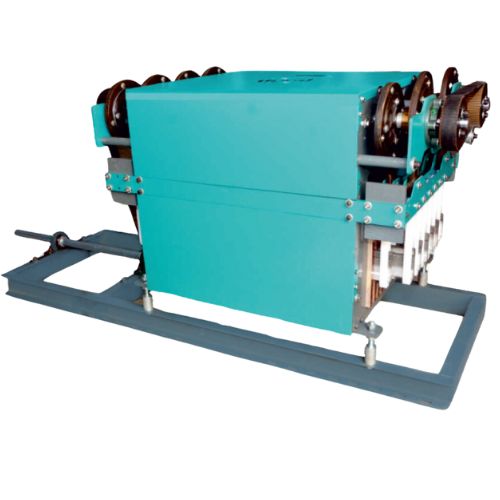

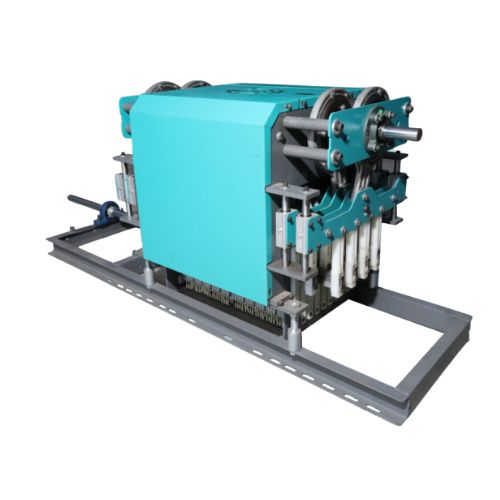

M5 ( OPTIONAL – M6 )
110MM, 100MM, 90MM
PARALLEL AND CROSS BOTH ARE AVAILABLE
SHUTTLE LOOM, RAPIER LOOM AND HAND LOOM

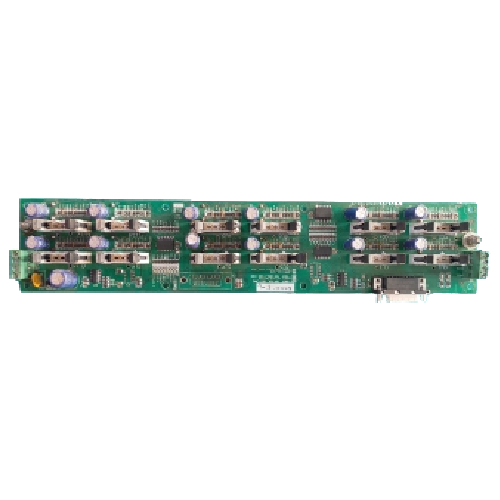

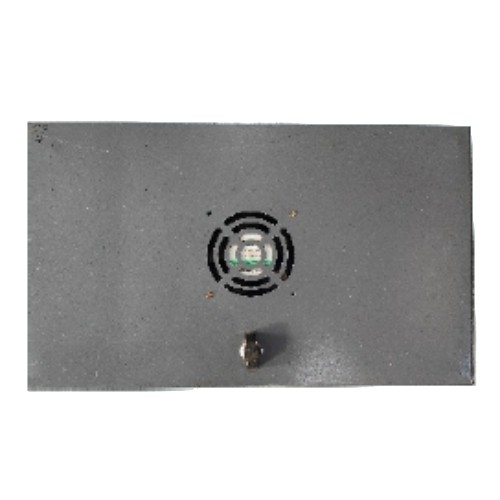

Electronic Specification

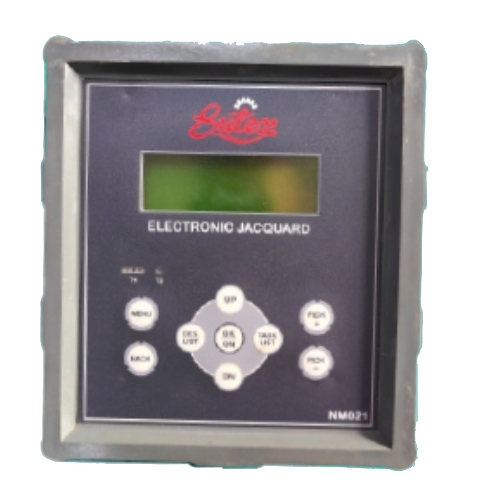

TOUCH SCREEN DISPLAY (OPTIONAL)
DESIGN FORM: BMP, EP, JC5
CUT MARK FACILITY FOR INDICATING CUT LENGTH
USB PORT FOR DESIGN TRANSFER
COMPATIABLE TO PROGRAMME 10 DESIGN IN A SEQUENCE WITH SPECIFIC NUMBER OF REPEAT
LOOM MOTOR STOP SYSTEM DESIGNED FOR MULTIPLE WEFT CHANGE (DESIGNED FOR VARANASI)
AUTO PICK REVERSE FORWARD
PICK FIND SYNCHRONIZATION

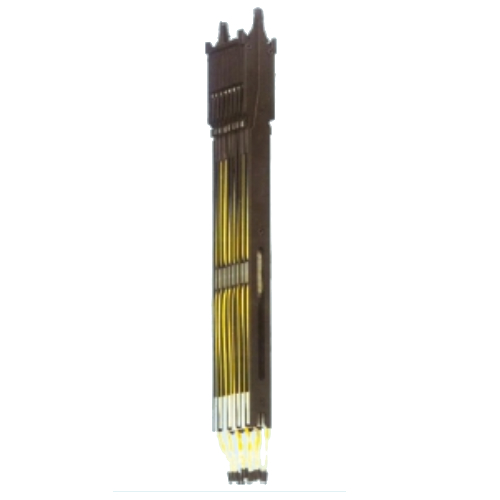

HOOK
CHOWK
RPM
ROW X COLUMN
640
160
350
8 x 10
960
240
350
8 x 15
960
240
350
12 x 10
1280
320
350
16 x 10
1344
336
350
12 x 14
1408
352
350
16 x 11
1440
360
350
12 x 15
1536
384
350
12 x 16
1536
384
350
16 x 12
2048
512
300
16 x 16
2688
672
275
16 x 21
3072
768
275
16 x 24
5376
1344
275
24 x 48
